Regler
Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. Combo the RX8 GEN3 with a Tekin T8 Brushless Motor for 1/8 Scale Buggies and Truggies or a Pro4HD for 4WD Short Course domination!Specs
Controls: Forward/Brake/Reverse
Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
BEC: 6.0v / 7.4v @ 8amps
Motor Limit Brushless Mode: 2S - No Limit
3S - 4000kV
4S - 3500kV
5S - 2200kV
6S - 2200kV
Motor Limit Brushed Mode: No Limit
Max Current: 300amps per phase*
Burst Current: 1000amps per phase*
Timing Profiles: 7 choices (on board)
Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
Weight: 2.7oz / 76.5g
*Per Manufacturer Specs
Features
New HD Gold-plated Solder Posts for Easy Soldering
New Adjustable Torque Control
New Adjustable Throttle and Brake Frequencies
New HD High Voltage Programmable BEC
Ultra-smooth and Precise Throttle and Braking Control
Compatible with Brushless and Brushed Motors
Easily Access Programming, Anywhere, Anytime
Datalogging Capability
EZ Access HotWire Programming Port
HotWire Interface for Advanced Programming and Updating
D2: Dual Drive Mode Technology
On-Board Temperature Indicator
HDAC: High Density Copper PCB's
Sensor Plug for Precise Commutation with all Motors
Self Test Diagnostics and Factory Reset
Pit Tune Mode
DGF2: Digital Glitch Filtering V2
QuickTune™ Programming
One-Touch Radio Calibration
Motor

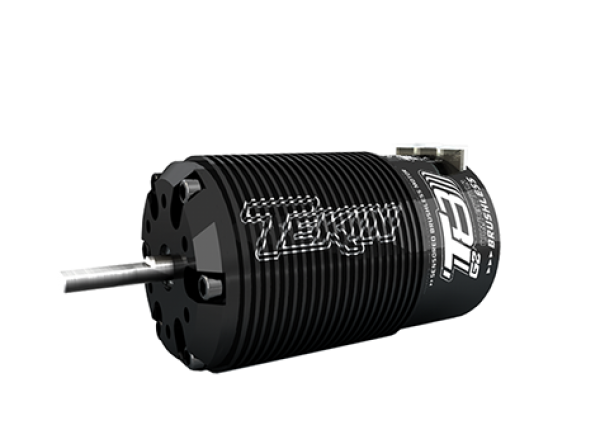

Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.
Voltage Limit: 2650kV - 4S LiPo
2250kV - 4S LiPo
2050kV - 4S LiPo
2000kV - 4S LiPo
1900kV - 4S LiPo
1700kV - 5S LiPo
1550kV - 5S LiPo
1400kV - 6S LiPo
1350kV - 6S LiPo
Weight: 4030 Buggy 11oz / 311g
4038 Truggy 13oz / 368
Shaft Dimensions: 5mm (.196") x 19mm
Motor Diameter: 40mm / 1.57"
42mm / 1.65" Including Fins
Motor Length: 4030 Buggy 69mm / 2.71"
4038 Truggy 77mm / 3.03"
Bearing Dimensions: Front: 5 x 16 x 5mm
Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
OFF ROAD
1:8 4WD Buggy
1:8 4WD Truggy
1:8 4WD Monster Truck
ON ROAD
1:8 4WD GT
1:8 4WD GP
Features
4 Pole 12 Slot High Torque Motor Design
1:8 Scale Chassis Specific
ROAR Legal
CNC Machined 6061-T6 Billet Aluminum Ribbed Heat Sink Can
Neodymium Sintered Magnets
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity and Efficiency
Low Resistance, High Power Solder Tabs
Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems
Anodized End-bell plates maximize corrosion and wear resistance
High RPM ABEC-5 Precision Bearings
Oversized Front Bearing adds Durability
Rebuild-able Design
Designed to be paired with the RX8 GEN3 ESC
