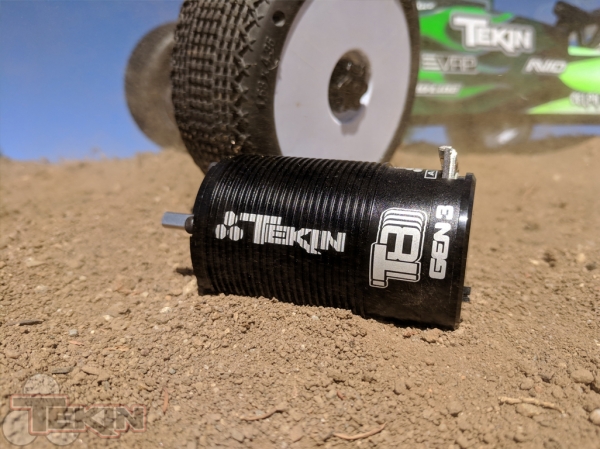

Tekin T8gen3 4030 T8 BL Motor 1900kv

Tekin's T8 GEN3 racing motors are racing performance defined. With a stronger rotor, new stack features and lower resistance the T8 GEN3 motors are a versatile, unmatched and advanced power delivery system. Relentless amounts of torque and power are at your disposal with industry-leading RC motor technology. Coupled with an RX8 GEN3 utilizing Tekin's D2 Dual Drive Technology, the T8 GEN3 packs efficiency and precise control through the entire RPM range. Maintain Pro- level control of your chassis no matter the situation on the track with a T8 GEN3. Pair the T8 GEN3 with an RX8 GEN3 Speed Control for the ultimate in 1:8 scale racing power systems.


Voltage Limit: 2650kV - 4S LiPo
                         2250kV - 4S LiPo
                         2050kV - 4S LiPo
                         2000kV - 4S LiPo
                         1900kV - 4S LiPo
                         1700kV - 5S LiPo
                         1550kV - 5S LiPo
                         1400kV - 6S LiPo
                         1350kV - 6S LiPo

Weight: 4030 Buggy 11oz / 311g
              4038 Truggy 13oz / 368

Shaft Dimensions: 5mm (.196") x 19mm

Motor Diameter: 40mm / 1.57"
                            42mm / 1.65" Including Fins

Motor Length: 4030 Buggy 69mm / 2.71"
                         4038 Truggy 77mm / 3.03"

Bearing Dimensions: Front: 5 x 16 x 5mm
                                     Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes


OFF ROAD

​ 1:8 4WD Buggy
​ 1:8 4WD Truggy
​ 1:8 4WD Monster Truck

ON ROAD

​ 1:8 4WD GT
​ 1:8 4WD GP


Features

 4 Pole 12 Slot High Torque Motor Design

​ 1:8 Scale Chassis Specific

​ ROAR Legal

​ CNC Machined 6061-T6 Billet Aluminum Ribbed Heat Sink Can

​ Neodymium Sintered Magnets

​ Precision Engineered for Maximum Energy Conversion

​ High Purity Copper Windings Maximize Conductivity and Efficiency

​ Low Resistance, High Power Solder Tabs

​ Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

​ Anodized End-bell plates maximize corrosion and wear resistance

​ High RPM ABEC-5 Precision Bearings

​ Oversized Front Bearing adds Durability

​ Rebuild-able Design

​ Designed to be paired with the RX8 GEN3 ESC
