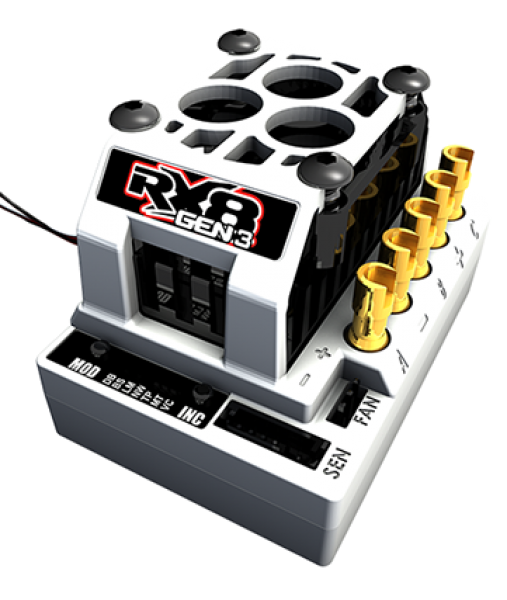

Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. Combo the RX8 GEN3 with a Tekin T8 Brushless Motor for 1/8 Scale Buggies and Truggies or a Pro4HD for 4WD Short Course domination!

Specs

Controls:                                 Forward/Brake/Reverse

Input Voltage:                          2S-6S LiPo / 4-16S NiMH-NiCD

BEC:                                        6.0v / 7.4v @ 8amps

Motor Limit Brushless Mode:   2S -  No Limit

                                                 3S -  4000kV

                                                 4S -  3500kV

                                                 5S -  2200kV

                                                  6S -  2200kV

Motor Limit Brushed Mode:       No Limit

Max Current:                              300amps per phase*
Burst Current:                            1000amps per phase*

Timing Profiles:                           7 choices (on board)

Brushed Modes:                          FWD Only / FWD-REV / FWD-REV Delay

Brushless Modes:                        FWD Only / FWD-REV / FWD-REV Delay

Dimensions:                                 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm

Weight:                                         2.7oz / 76.5g
*Per Manufacturer Specs


Features

 New HD Gold-plated Solder Posts for Easy Soldering
 New Adjustable Torque Control
 New Adjustable Throttle and Brake Frequencies
​ New HD High Voltage Programmable BEC
 Ultra-smooth and Precise Throttle and Braking Control
​ Compatible with Brushless and Brushed Motors
​ Easily Access Programming, Anywhere, Anytime​
 Datalogging Capability​
 EZ Access HotWire Programming Port​
 HotWire Interface for Advanced Programming and Updating​
 D2: Dual Drive Mode Technology​
 On-Board Temperature Indicator​
 HDAC: High Density Copper PCB's​
 Sensor Plug for Precise Commutation with all Motors​
 Self Test Diagnostics and Factory Reset​
 Pit Tune Mode​
 DGF2: Digital Glitch Filtering V2​
 QuickTune™ Programming​
 One-Touch Radio Calibration

Motor

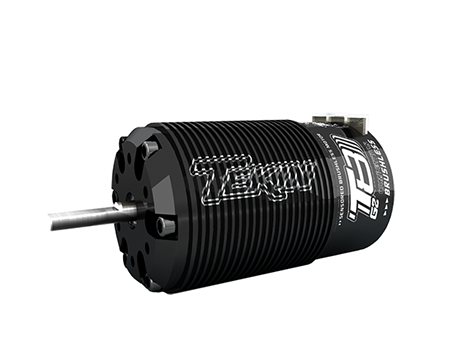

Tekin's Redline T8 GEN2 motor defines large scale, high-performance racing. Featuring sensors for flawless, reliable on-track operation, the T8 GEN2 provides pro-level controlability and power. Capable of both sensored and sensorless operation, the T8 GEN2 motors are the leading edge of large scale motor technology. Utilize the torque and speed of your T8 to propel you across the finish line!

With the GEN2 name comes exceptional performance, superior smoothness and control. The award-winning and track-proven reputation of the T8 series received a new look and extensive tuning to better an already dominant design. The optimized stack design and ultra-smooth powerband bring unrivaled professional performance to uphold the GEN2 name.

Couple the power of a Redline T8 GEN2 with the RX8 GEN2 for the ultimate in 1/8 racing equipment!


nput Voltage:  6S - 1400kv

Weight: 311g / 11oz

Shaft Dimensions: 5mm (.125") x 19mm

Motor Diameter: 40mm / 1.57" (42mm / 1.65" including fin)

Motor Length: 69mm / 2.71"

Bearing Dimensions: Front: 5 x 16 x 5mm / Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm *all

Rebuildable: Yes

•  CNC Machined 6061 T6 Billet Aluminum Ribbed Heatsink Can
• ​ Matte Anodized for Maximum Corrosion Resistance
• ​ Sensored and Sensorless Operation
• ​ High Current Solder Tabs
• ​ Rebuildable Design
• ​ Solderless Sensor PCB Replacement
• ​ 4-Pole Neodymium Sintered Magnet
• ​ Dual-Plug Sensor Wire Harness
• ​ ABEC5 Precision High Speed Oversized Bearings
• ​ Precision Engineered for Maximum Energy Conversion
• ​ Designed to be paired with the RX8 GEN2 ESC
• ​ ROAR Approved
