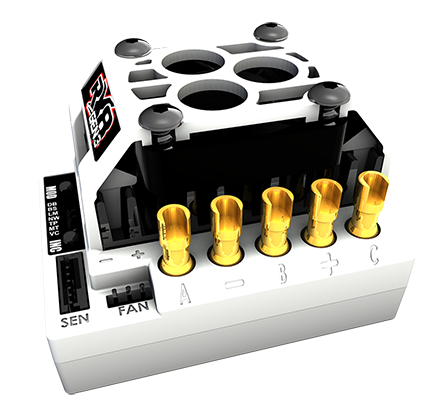

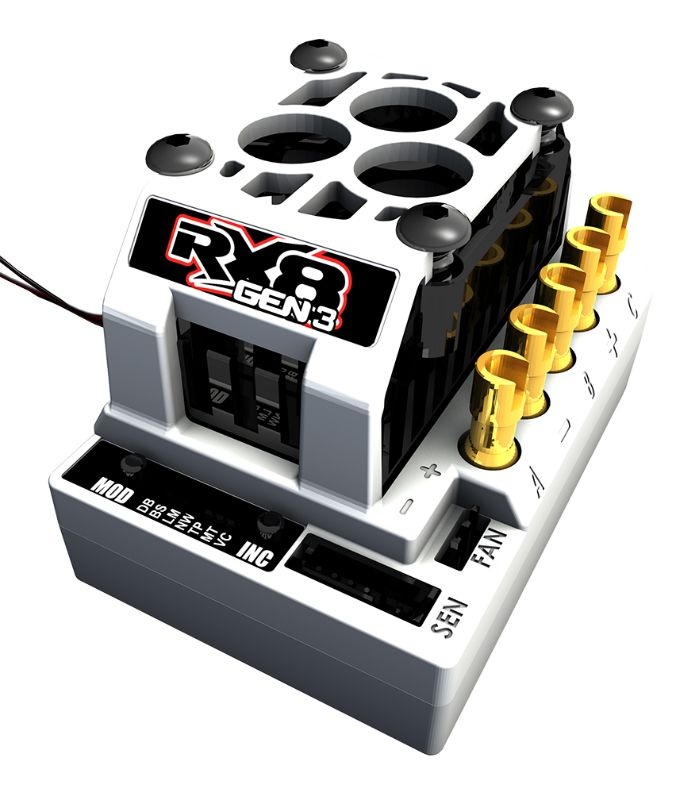

Tekin's RX8 GEN3 brings bigger power handling capabilities and increased reliability to 1/8 Scale Racing. The RX8 platform has proven itself to handle the rigors of racing, while providing professional features including a programmable High Voltage BEC, Data Logging Capabilities, Timing Profiles, Voltage Cutoffs for LiPos, HotWire 3.0 Bluetooth Connectivity and more. Utilizing Tekin's D2 Dual Drive Mode Technology, the RX8 runs both Sensored and Sensorless motor drives seamlessly, giving you the best of both worlds. The small footprint makes install on any chassis easy with the option of mounting with included hardware for extra security. Combo the RX8 GEN3 with a Tekin T8 Brushless Motor for 1/8 Scale Buggies and Truggies or a Pro4HD for 4WD Short Course domination!
Controls: Forward/Brake/Reverse
- Input Voltage: 2S-6S LiPo / 4-16S NiMH-NiCD
- BEC: 6.0v / 7.4v @ 8amps
- Motor Limit Brushless Mode: 2S - No Limit
3S - 4000kV
4S - 3500kV
5S - 2000kV
6S - 1700kV
Features
- Motor Limit Brushed Mode: No Limit
- Max Current: 300amps per phase*
- Burst Current: 1000amps per phase*
- Timing Profiles: 7 choices (on board)
- Brushed Modes: FWD Only / FWD-REV / FWD-REV Delay
- Brushless Modes: FWD Only / FWD-REV / FWD-REV Delay
- Dimensions: 1.5 x 2.2 x 1.4" / 38 x 55.8 x 35.5mm
- Weight: 2.7oz / 76.5g
- *Per Manufacturer Spec
- New HD Gold-plated Solder Posts for Easy Soldering
- New Adjustable Torque Control
- New Adjustable Throttle and Brake Frequencies
- New HD High Voltage Programmable BEC
- Ultra-smooth and Precise Throttle and Braking Control
- Compatible with Brushless and Brushed Motors
- Easily Access Programming, Anywhere, Anytime
- Datalogging Capability
- EZ Access HotWire Programming Port
- HotWire Interface for Advanced Programming and Updating
- D2: Dual Drive Mode Technology
- On-Board Temperature Indicator
- HDAC: High Density Copper PCB's
- Sensor Plug for Precise Commutation with all Motors
- Self Test Diagnostics and Factory Reset
- Pit Tune Mode
- DGF2: Digital Glitch Filtering V2
- QuickTune™ Programming
- One-Touch Radio Calibration
-
