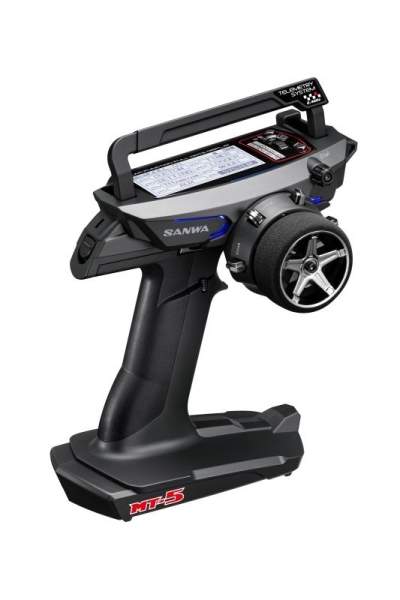

Sanwa Fernsteuerung MT-5 mit RX-493I CH4 2.4GHZ FH5

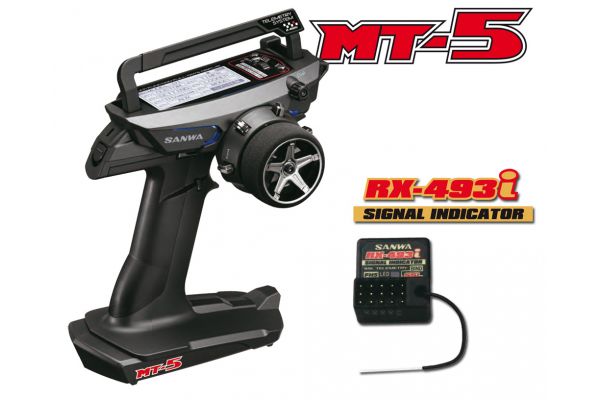

SANWA MT-5 Sender 2,4 GHz FH5, 4-Kanal, RX-493i Empfänger

Fernsteuerung für Fortgeschrittene

[Features]
• Großes LCD-Display
• Multifunktionsrad für einfache Bedienung
• SUR, SSR, SHR Modus
• FH5 Übertragungssystem
• Micro SD Kartenslot
• Integrierter Tragegriff
• Eingebaute interne Antenne
• Einstellbarer Gas-/Bremshebel
• Griffschale S-Größe
• Empfänger-Staubschutzbox
• 3x AAA Batterien
• Gewicht 382g

[Andere Funktionen] • Dual Rates [D/R] • Geschwindigkeit [SPEED] • EXPO Kurve [CURVE] • Fail Safe [F/S] • Base [BASE] • Rückwärts [REV] • Sub Trimmung [SUB-T] • Endpunkteinstellung [EPA] • Trimmung [TRIM] • ABS-Bremse [ALB] • Offset [OFFSET] • Gastyp [TH TYPE] • AUX [AUX] • Step AUX [STEP AUX] • Point AUX [POINT AUX] • Vierradlenkung [4WS] • Motor auf Achse [MOA] • AUX Mixing [AUX-MIX] • Code AUX [CODE AUX] • Stoppuhr [TIMER] • Rundenzeit [LAP TIMER] • [INT TIMER] • Countdown [DOWN TIMER] • Telemetrie [TELEMETRY] • LOG Daten [LOG DATA] • Export [.CSV] • Sperrfunktion • Telemetrie-Einstellung [TELEMETRY SETTING] • Grafische Darstellung [GRAPH SETTING] • Telemetrie Schalter [TELEMETRY SWICH] • Modell [MODEL] • Modellauswahl [MODEL SELECT] • Modellname [MODEL NAME] • Modelle kopieren [MODEL COPY] • Modelle löschen [MODEL CLEAR] • Verbinden [BIND] • Tastenzuweisung Schalter [KEY ASSIGN SW] • Tastenzuweisung Trim [KEY ASSIGN TRIM] • Benutzerdefiniertes Menü [CUSTOM-LIST] • AUX Typ [AUX TYPE] • Racing Modus [RACING MODE] • Batterie [BATTERY] • Summer [BUZZER] • LED [LED]

• Kompatible Empfänger: RX-491, RX-492, RX-493, RX-493i

[Empfänger Features]
• 2,4GHz FH5 (SUR, SSL)
• 4 Kanal • Eingangsspannung 3,7-7,4V
• Abmessungen 26x23,2x14mm
• Gewicht 6,2g


◆FH5 RF mode compatible
FH5 RF mode is higher resolution than former FH4 RF mode.
Also, MT-5 installed SUR (SANWA ULTRA RESPONSE) Mode
which is faster mode than SSR (SANWA SUPER RESPONSE) mode
which was installed in MT-44.

Combination with FH5 RF mode and SUR mode will give great smooth feeling.
Compatible receivers are RX-491, RX492, RX-493, and RX-493i.
(FH3 and FH4 compatible receivers as RX-38*, 45*, 46*, 47*, and 48* cannot be used for MT-5)

◆Indicator Function compatible
Indicator function can be checked signal strength connected transmitter.
Using with transmitter which installed Indicator function can be used for finding problems
as incorrect receiver placing and finding the best receiver position for transmitter.

By SANWA technical development, indicator function can be checked signal strength without any effect with response.

◆HIGH RESOLUTION DISPLAY
The same detailed dot as MT-44 enables so clear display.
Three kind of telemetry data can be displayed simultaneously because of gray scale display.

◆BEST POSITION FOR STEERING / THROTTLE
Steering/Throttle is arranged in the best position for operation.
Drop Down is used as standard postion.

◆THREE AAA BATTERIES
Three AAA batteries allows to be not only compact but also light.

◆USB CHARGE
When used with optional Li-Po 1 cell battery, weight become lighter and it can be changed from USB input.




[SSL(SANWA Synchronized Link) System]
SANWA NEW SSL SYSTEM
●When used with compatible receivers with Super Vortex Series, SV-Plus Series, PGS Servo Series, and SGS-02, etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
●Please do not use Analog Servo for SHR, SSR, or SUR mode.
If analog servo is used for SHR, SSR, or SUR mode, the servo will be broken and will not work.
Digital servo (PGS, SRG, Digital ERG, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used by PGS and SRG series servo.
SSR mode can be also used by SUPER VORTEX Gen 2 PRO, Gen2, STOCK, SUPER VORTEX ZERO, TYPE D, SPORT, HX-12 STOCK SPECIAL HV-01, and HV-02.
●SUR mode can be used only by PGS series servo.
SUR mode can be also used by SUPER VORTEX Gen 2 PRO.
*SUPER VORTEX Gen2 PRO need firmware update for SUR response mode.
Please refer SUPER VORTEX Gen2 PRO page.
http://sanwa-denshi.com/rc/car/speedcontroller/super_vortex_gen2_pro.html

●About Version Update Program
Ver. 1.01.00 is latest version.
