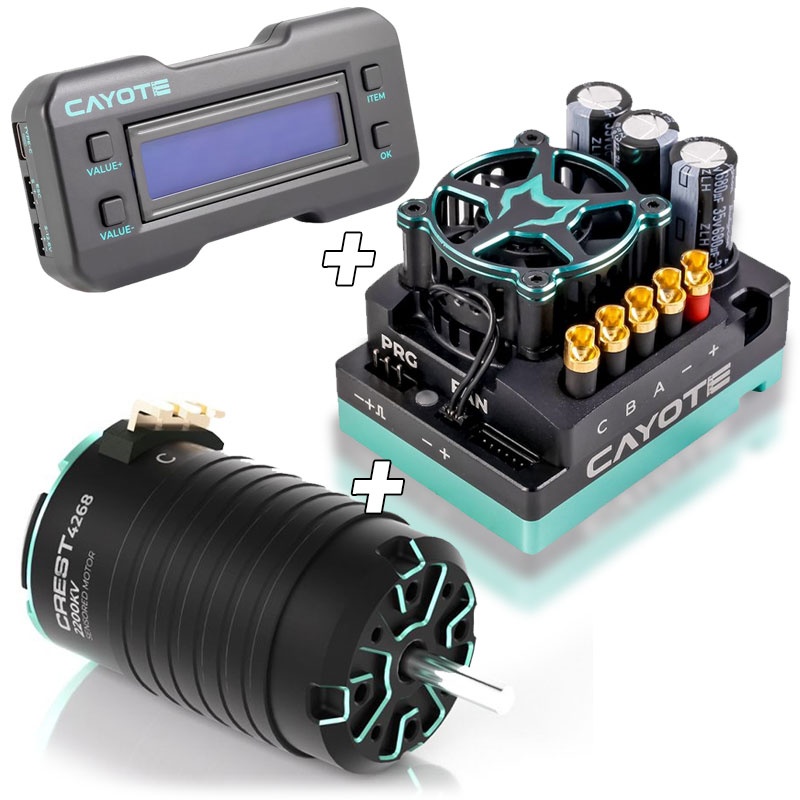

Maximale Performance zum starken Paketpreis: Mit den neuen CAYOTE Combo-Sets bekommen Sie perfekt abgestimmte Elektronik für ihr nächstes Rennen.
CREST 8 ESC Specifications
- Scale: 1/8
- Mode: Sensor/Sensorless
- Continuous Current: 200A
- Peak Current: 1080A
- Battery: 2-4S Lipo
- BEC Output Voltage: 6.0/7.4V
- BEC Output Current: 8A Cont. / 12A Peak
- Firmware Upgrade: Supported
- Data Recording: Extreme value, Real-time Data
- Size: 56.8x41.6x40mm
- Weight: 122g
Compatibility
- Motor: 4268/4274≤3000KV with 4S Lipo
- 1/8th Vehicle: Buggy/Truck(Truggy)/Etc.
- 1/8th Vehicle: Short Truck/Big Foot/Etc.
Wiring and Cooling
- Output Wires: Black-10AWG-180MMx3
- Input Wires: Red-13AWG-180MMx1, Black:-13AWG-180MM
- Cooling Fan: 30 x 30 x 10 mm, 5-8.4V BEC
ESC Programming Via
- Xlink Program Box Compatible
- B-Tune Connect (Optional)
- Internal Program (Port)(APP Control)
With the pure sensored drive mode, the system offers smoother throttle response and greater stability. The 8 Evo's Boost and Turbo dynamic timing adjusts motor settings in real-time, enhancing straight-line speed and providing better drive control entering and exiting corners. CREST 8 & CREST 8 Evo x CREST 4268 Motor Optimized Performance Together
CREST 4268 Motor
Der CAYOTE CREST 4268 wurde speziell für den anspruchsvollen 1/8 Wettbewerbseinsatz entwickelt – egal ob Offroad-Buggy, Truggy oder leistungsstarkes Pan Car. Präzise gefertigt und auf maximale Performance ausgelegt, überzeugt dieser Motor durch direkte Leistungsentfaltung und exzellente Kontrolle.
Features:
• Einstellbares mechanisches Timing (CW/CCW) – flexibel anpassbar für unterschiedliche Strecken- und Setup-Anforderungen
• Low-Cogging-Torque Design – extrem ruhiger Lauf mit sauberer, direkter Gasannahme
• Ultra-schnelle Reaktionszeit – lineare, fein dosierbare Leistungsentfaltung für maximale Kontrolle
• Direct-Drive-Charakteristik – besonders präzises Fahrgefühl
• CNC-gefrästes Vollmetallgehäuse – höchste Stabilität und optimale Wärmeableitung
• Robuste Bauweise innen wie außen – ausgelegt für harten Rennbetrieb
Der CREST 4268 verbindet rohe Power mit kontrollierbarer Performance – ideal für ambitionierte Racer, die maximale Effizienz und Fahrpräzision suchen.
Low Cogging Torque Design
Clean, Crisp Response Every Time
The low cogging torque design minimizes unwanted torque ripple, delivering smooth low-speed performance along with linear acceleration and braking.
This results in significantly reduced mechanical vibration, lower operating noise, and decreased power consumption.
The CREST 4268 motor integrates a high-performance Hall sensor with a proprietary optimization algorithm, improving efficiency and providing precise rotor detection. It eliminates traditional jitter and delay, delivering smoother, more linear control on the track. Ultra-Fast Response
Direct Drive Control
CREST 4268 MOTOR
Built to Perform
The CREST 4268 motor features a CNC-machined solid metal housing with a fully sealed structure for excellent dust and debris protection. The front endbell offers M3 and M4 mounting holes for easy compatibility with various motor mounts.
It uses precision copper windings, high-current tabs, a high-temperature explosion-proof rotor, high-performance stator core, and precision bearings to ensure high RPM durability and consistent power—built for stability and racing.
Supporting both clockwise (CW) and counterclockwise (CCW) adjustments. With a precise timing range of 20° to 40°, this design allows racers to fine-tune the motor’s performance according to different track conditions and personal driving styles, unlocking greater power and efficiency on the race track. Easily fine-tune to match different track types, keeping your car always in optimal performance.
